432.300 MHz amplified to get the +10dBm output. |
|
|
First IF signal. |
10 GHz Beacon Project cont.

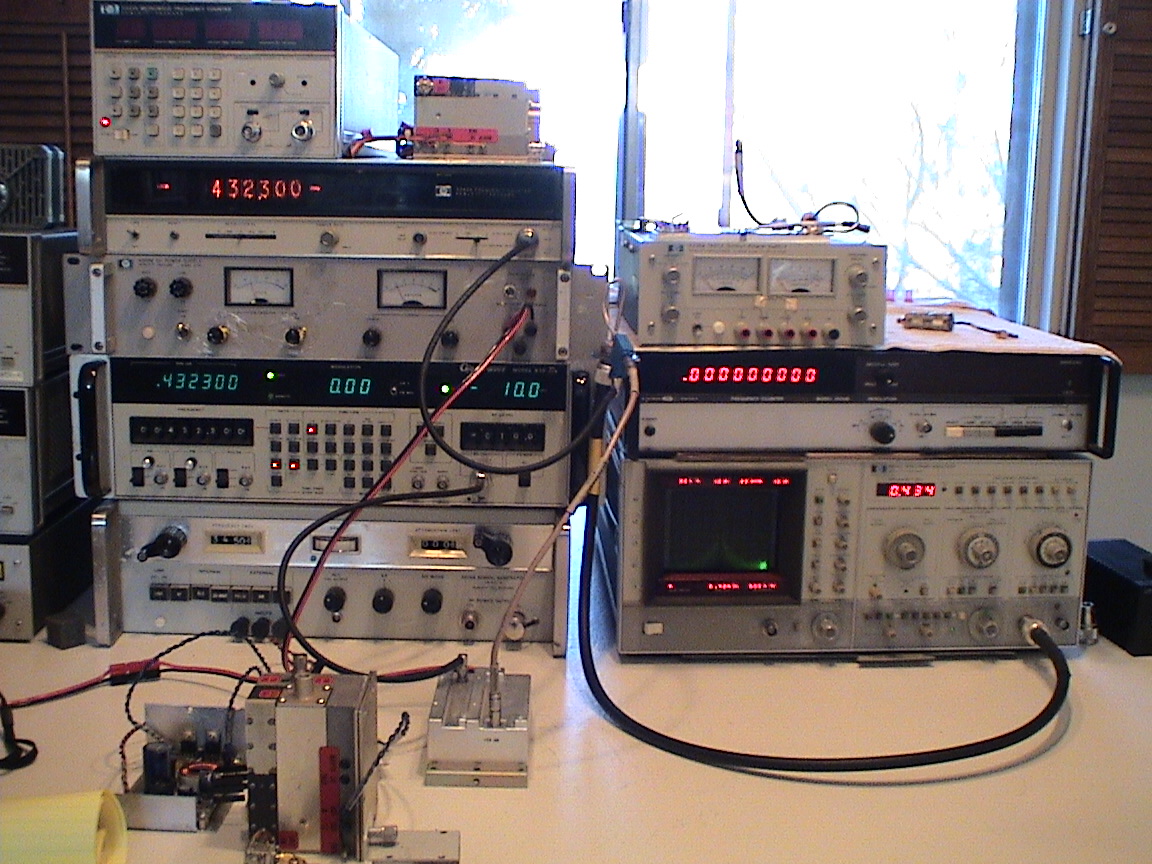

I used a signal generator to produce the first IF of 432.300 MHz.
|
|
|||

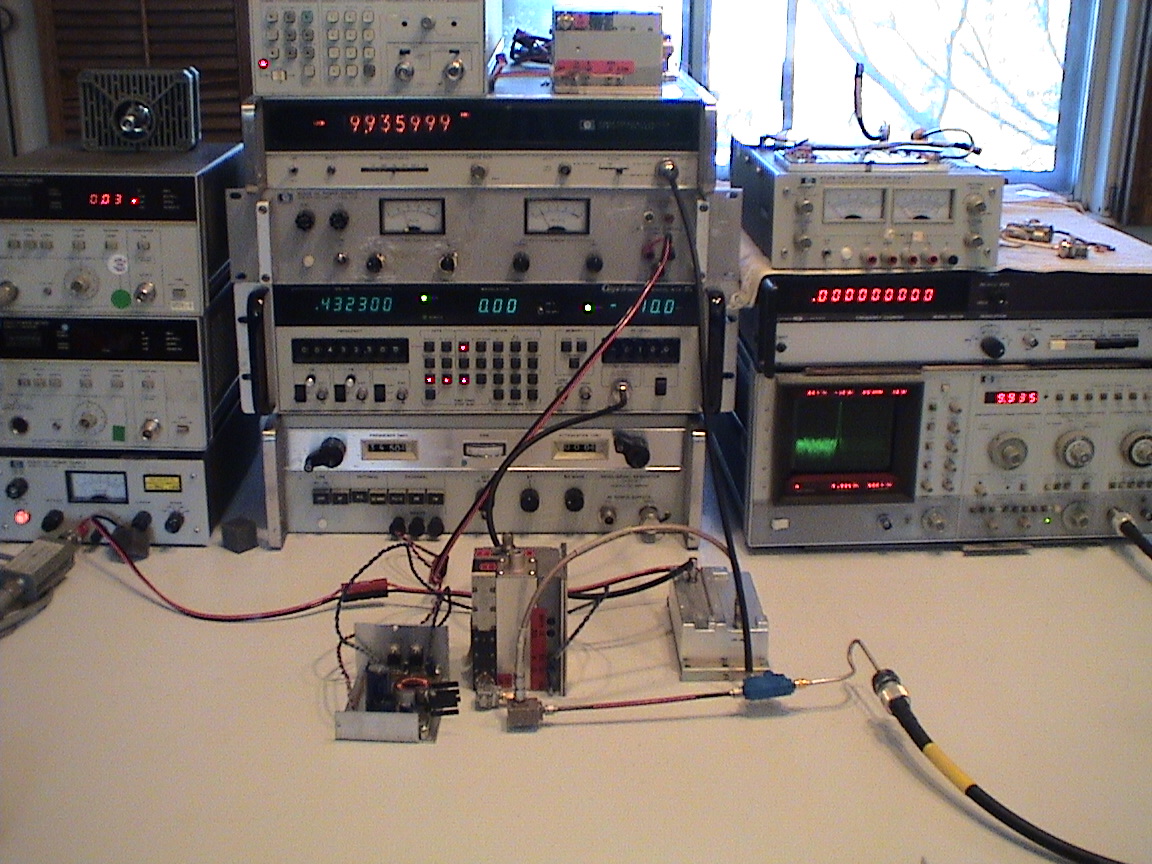

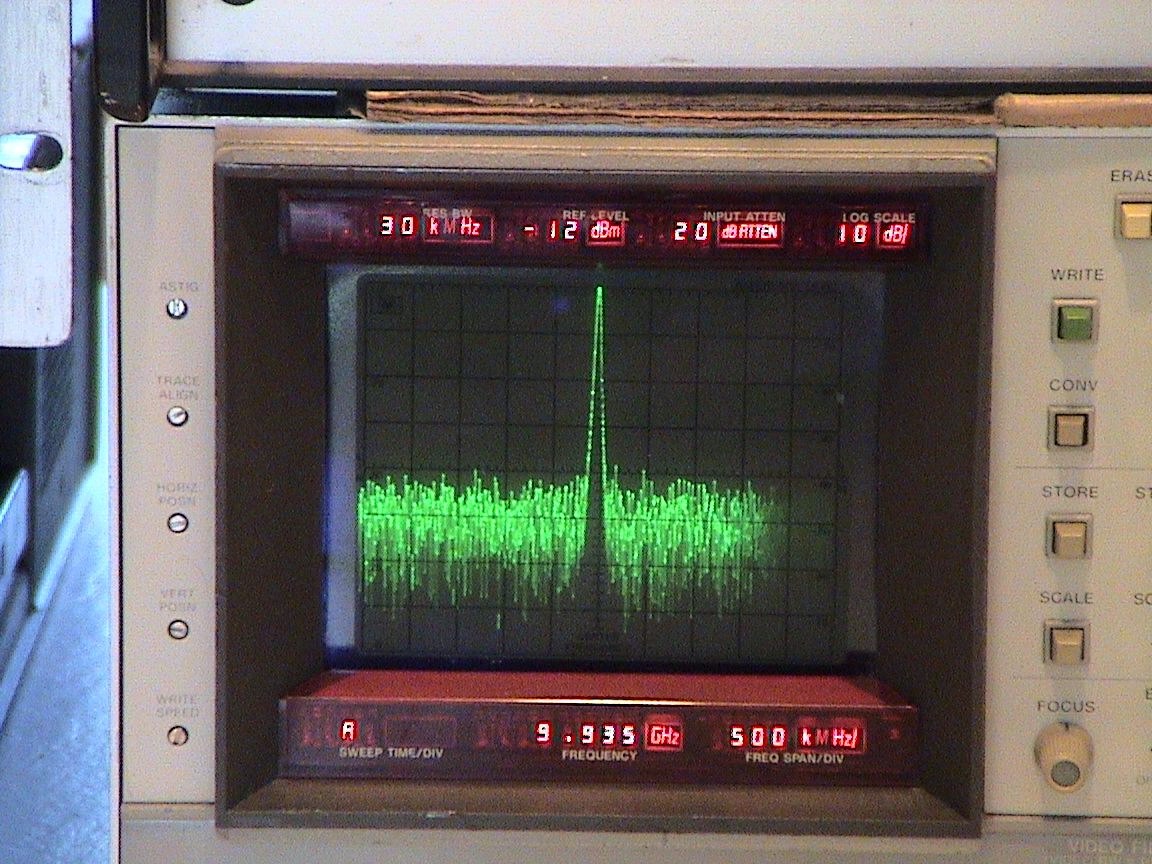

Added a mixer stage to produce the desired 9936 MHz. I also get several other harmonics to deal with.
The blue colored object is a directional coupler that sends the signal to both the spectrum analyzer and the counter.
|
|
|||
