10 GHz Beacon
Project cont.
Now I take the modulated signal at 10368.300
MHz and amplify it to around +15dBm.
This amplifier uses +12 VDC and has about
about +25dB of gain. There is a 2dB pad on the input.
|
|
|
|
Secondary amplifer stage after the filter.
|
|
|
|

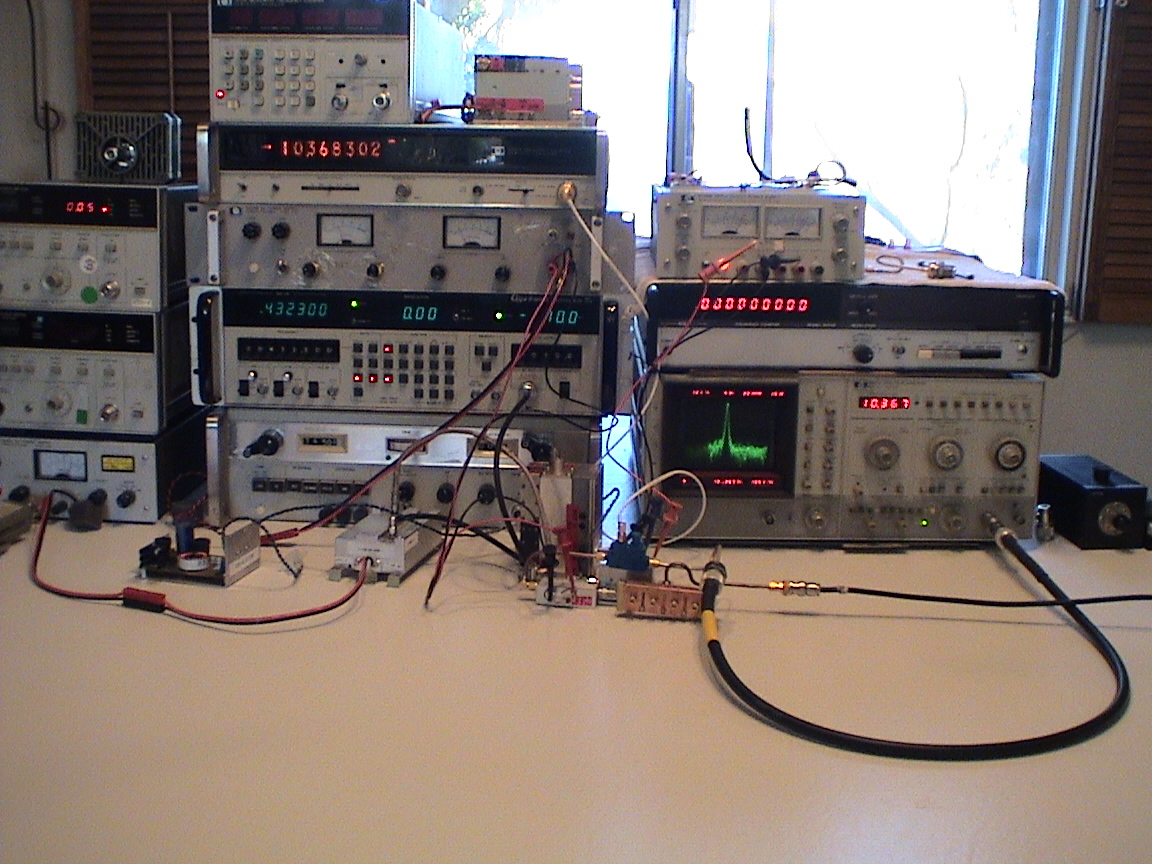

Secondary amplifier output. There is a 10dB pad on the input to the analyzer.
|
|
|

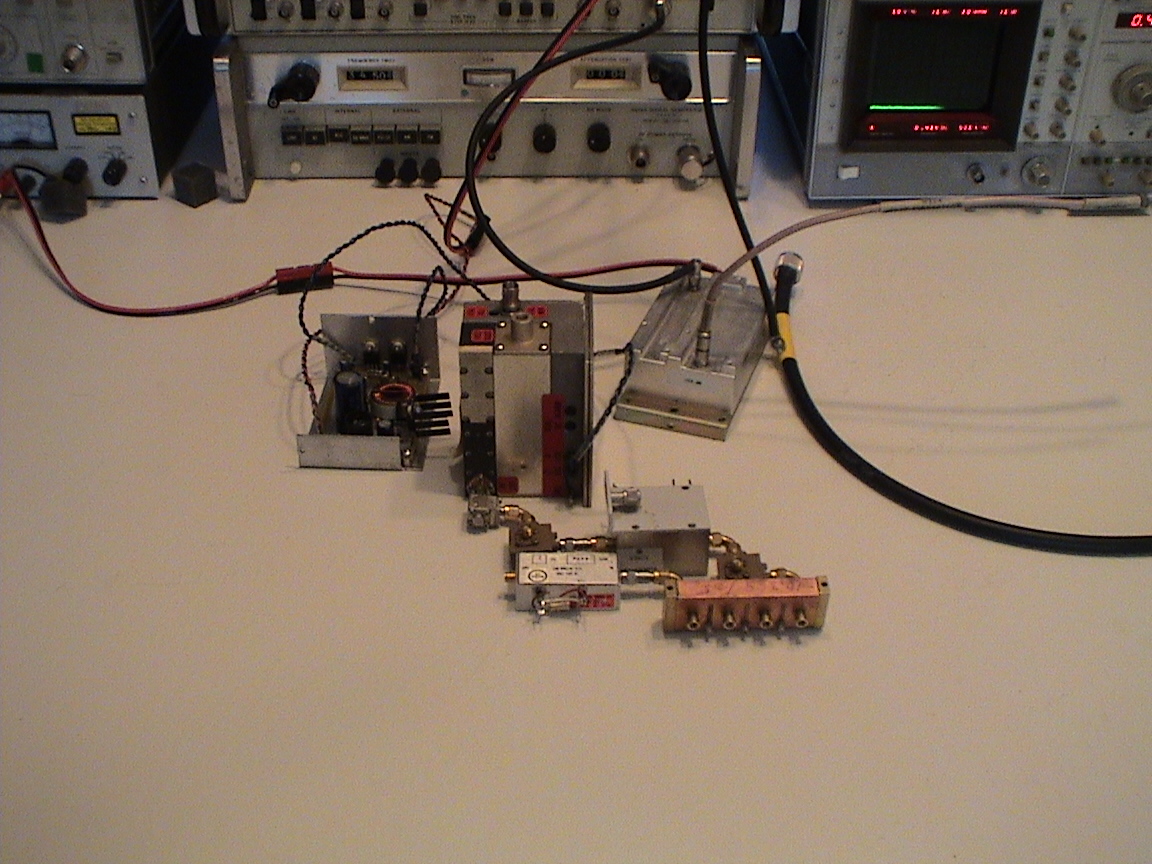

I measured the output power at +13.67dBm. Here is the final
bench assembly of the beacon.
|
|
|
|

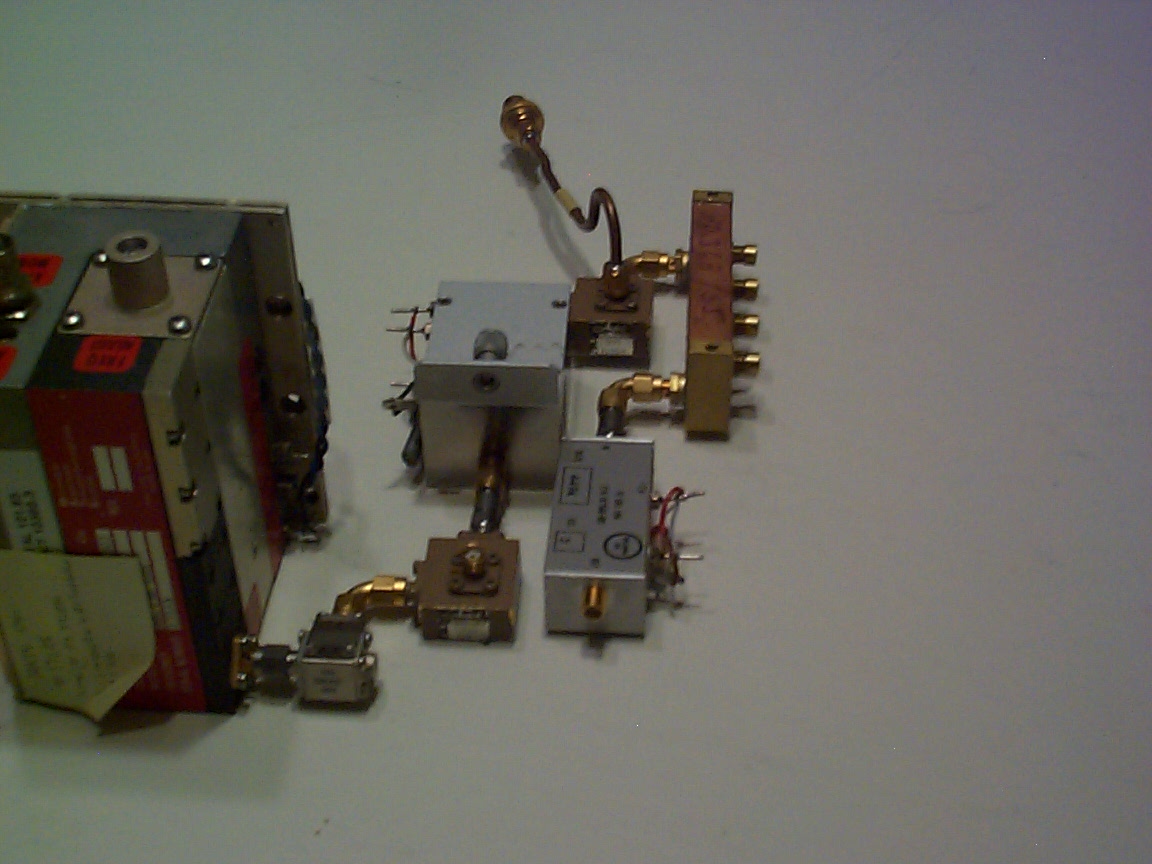

The partial assembly of the beacon.
|
|
|
|
Beacon assembly with wiring.
|
|
|
|

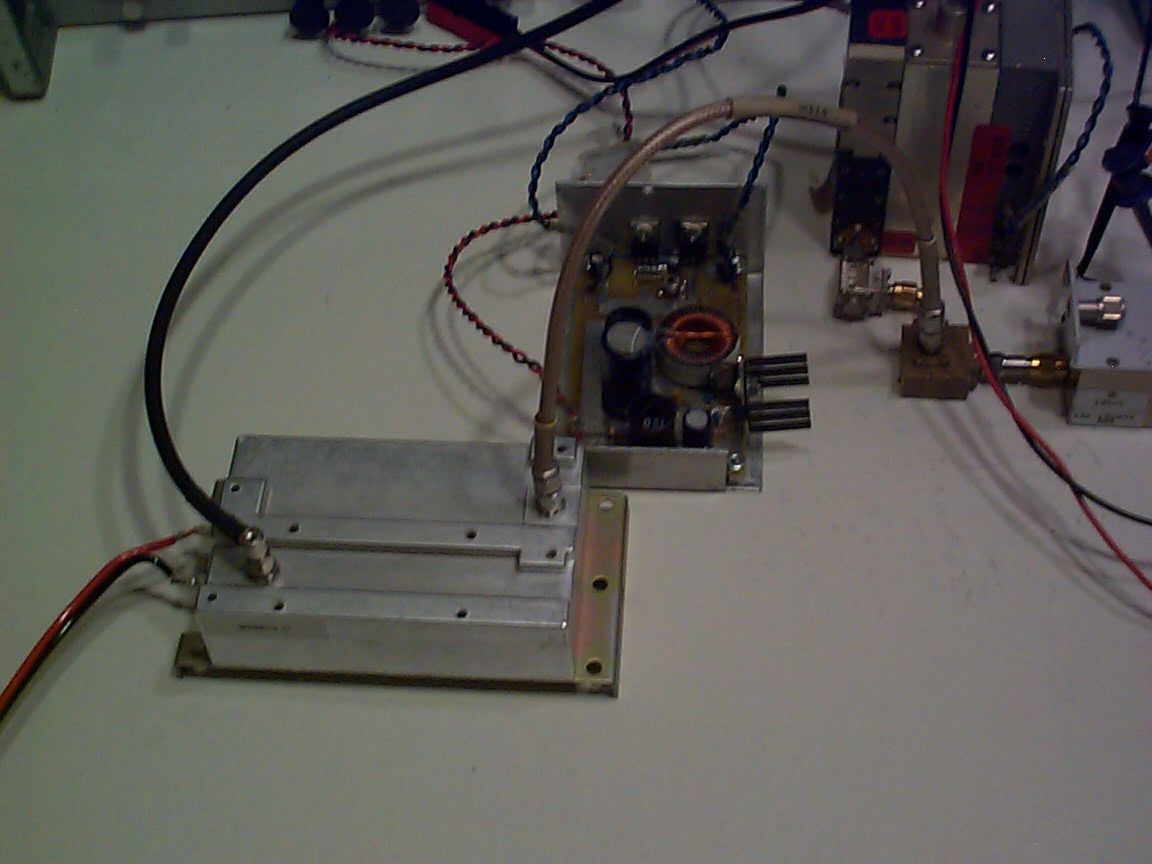

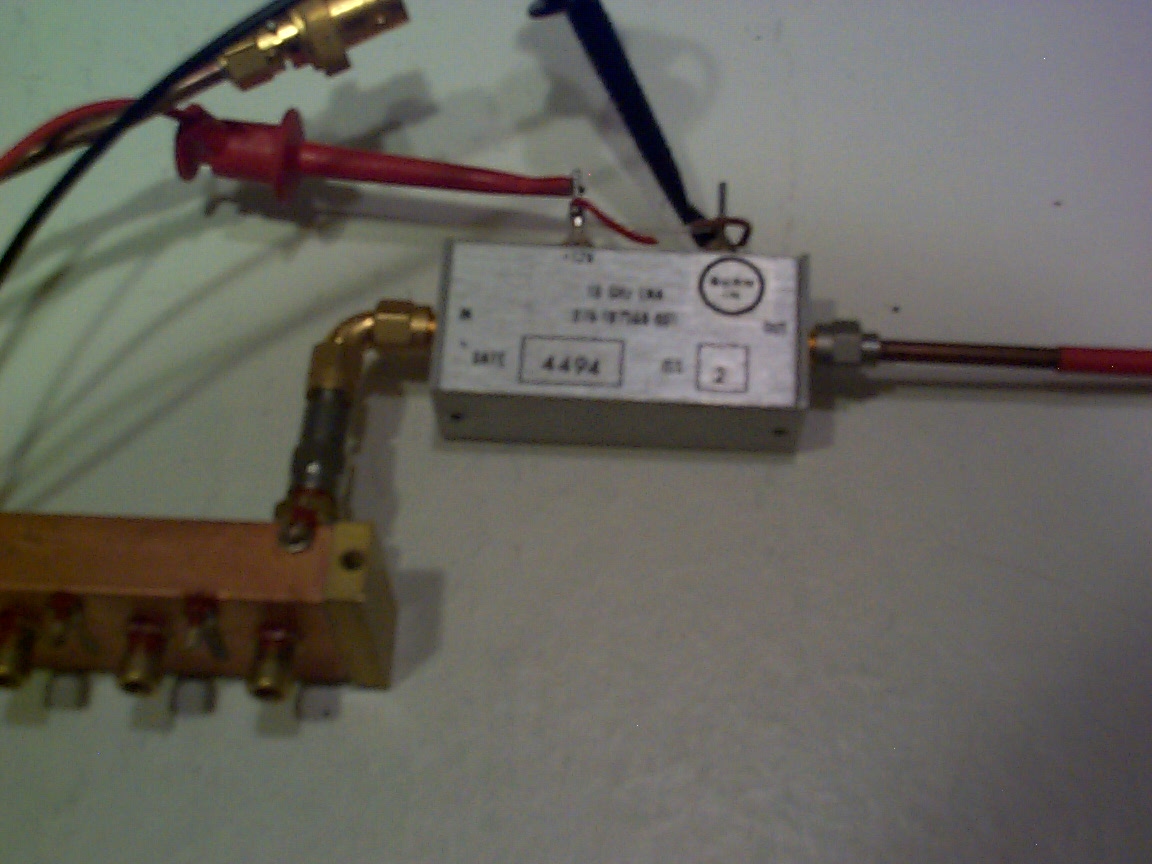

Second stage amplifier. +12VDC, 25dBm of gain.
|
|
|
|

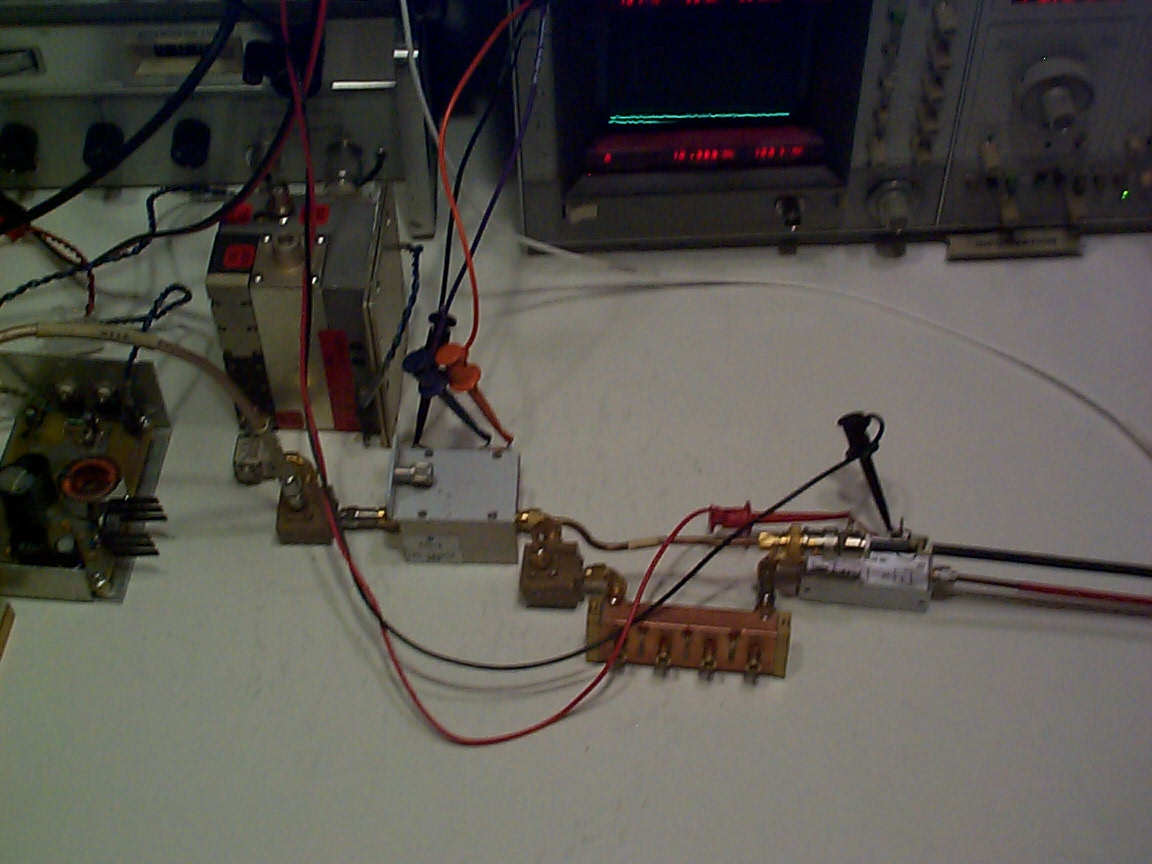

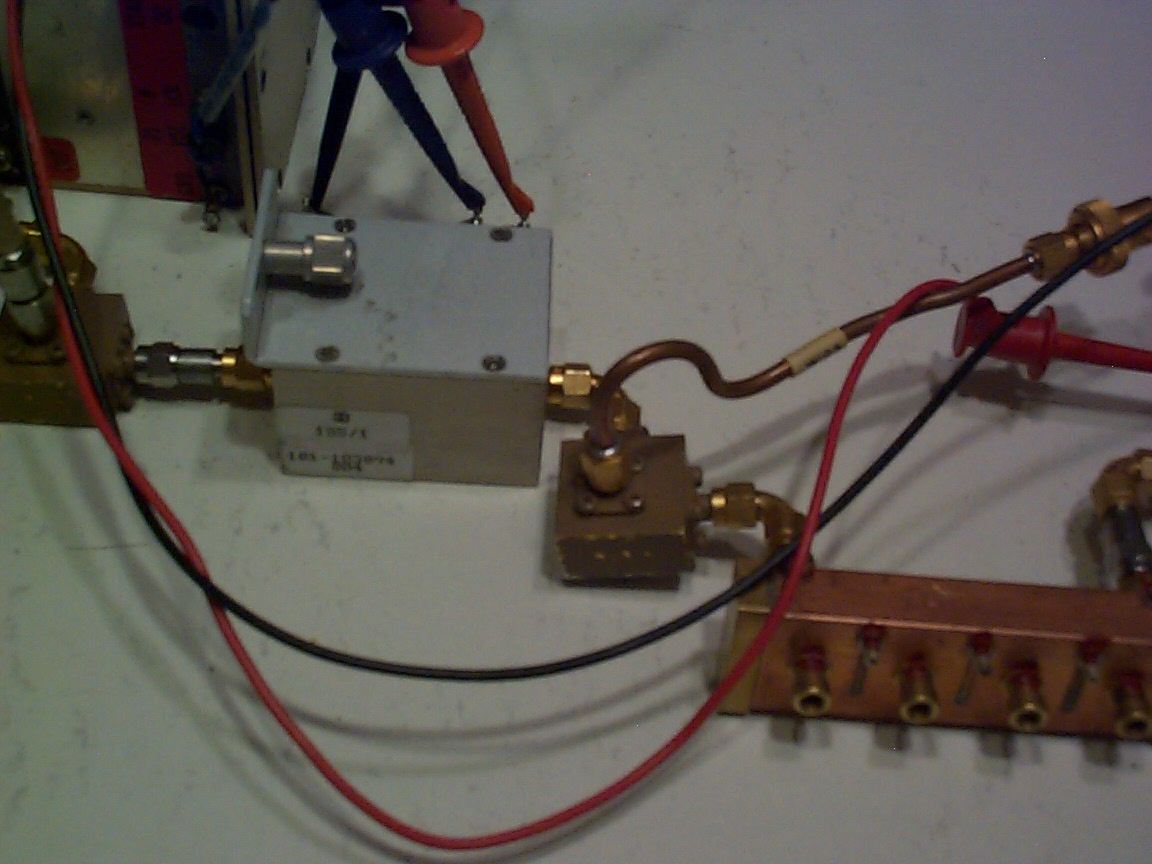

First stage amplifier and second mixer to filter.
|
|
|
|

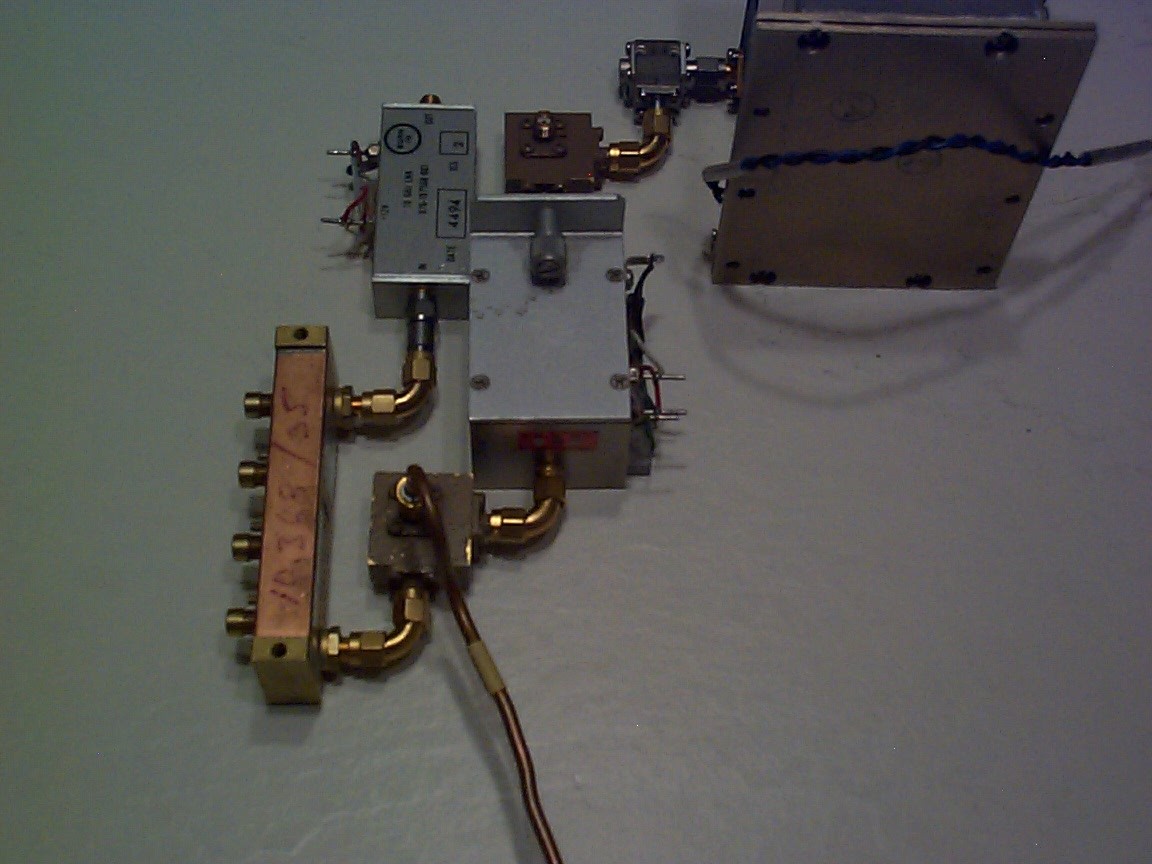

LO brick, isolator, first stage mixer and amplifier.
|
|
|
|
|
|

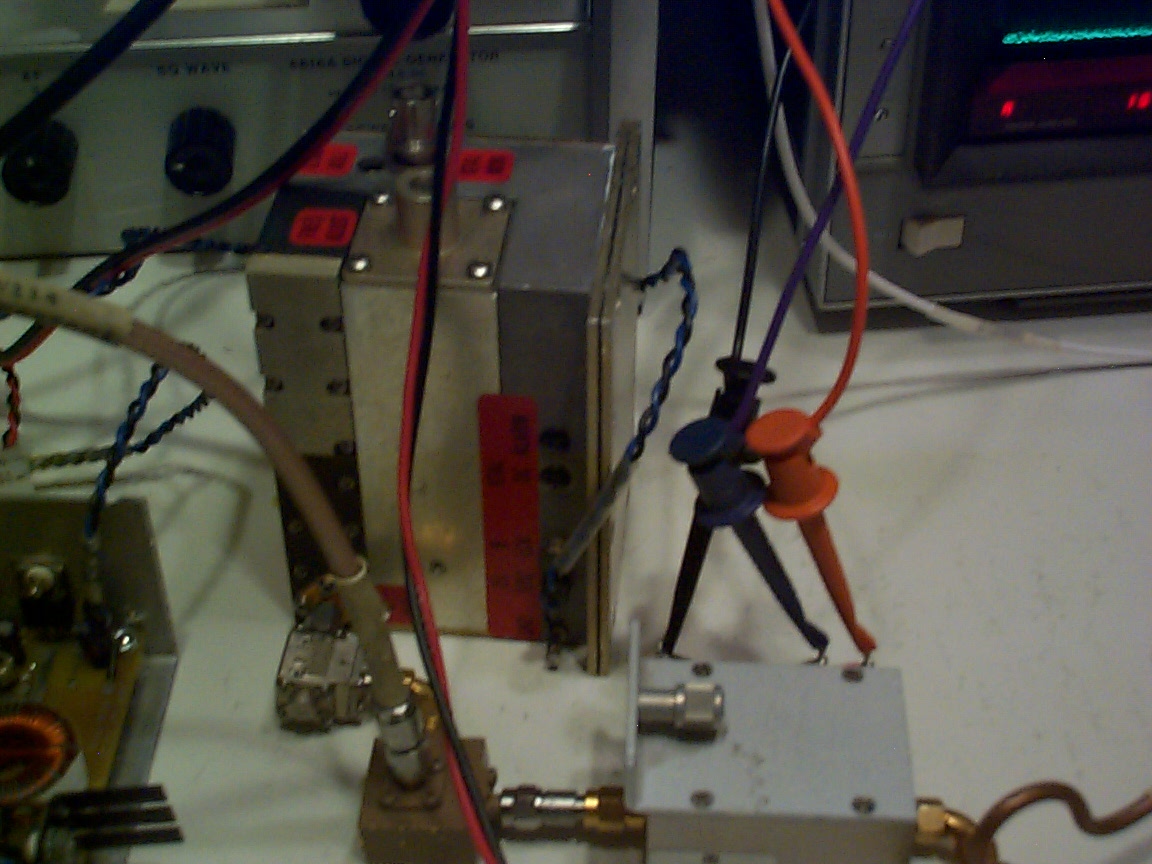

LO brick power supply and first IF amplifier.
|
|
|
|

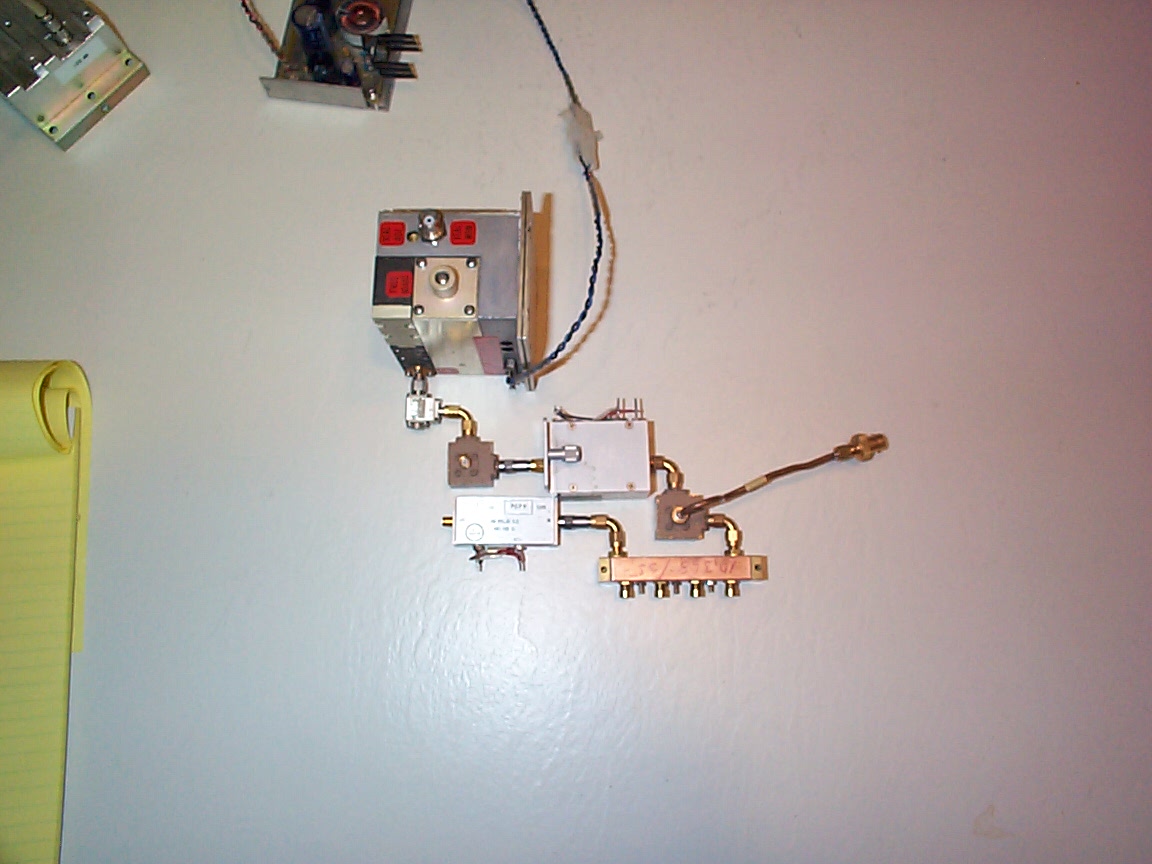

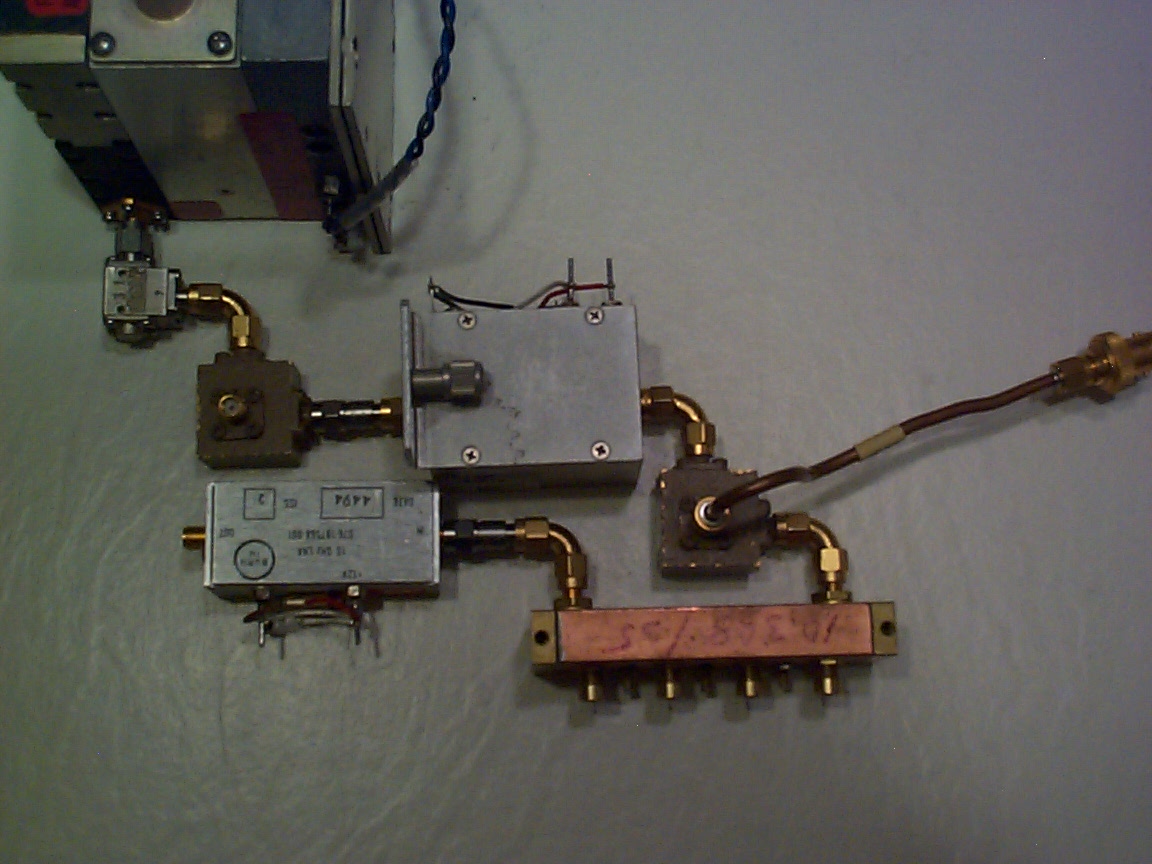

Overhead view of the assembly.
|
|
|
|
Output stage.
|
|
|
|

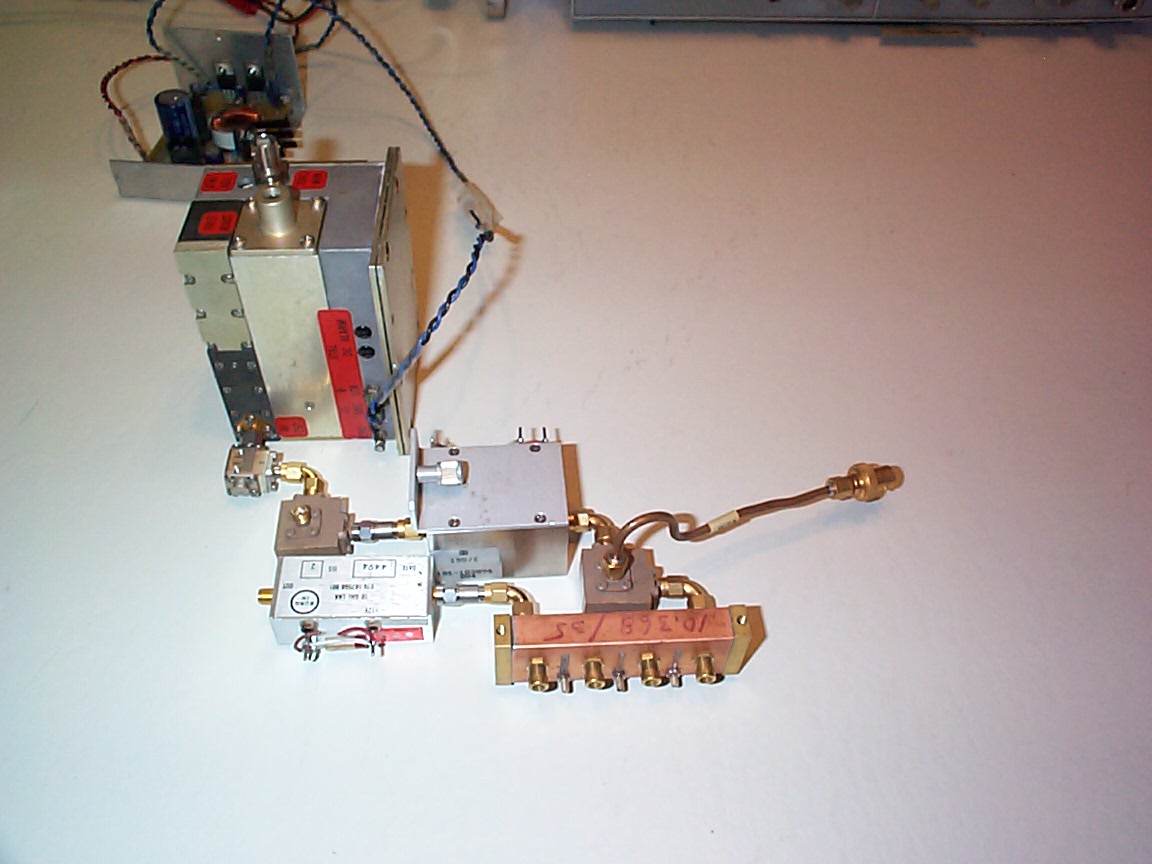

Right side view.
|
|
|
|
Left side view.
|
|
|
|
|
|
Overhead.
|
|
|
|
Bench assembly.
|
|
|
